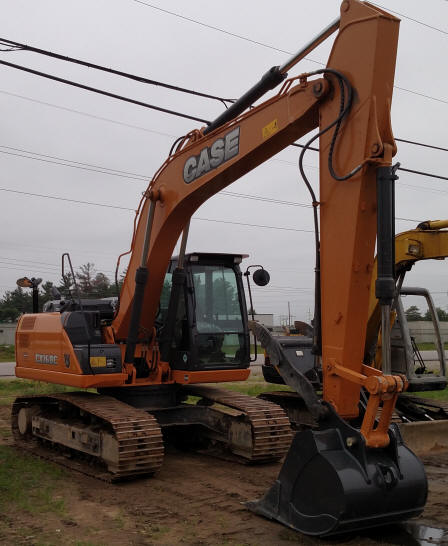

Case CX160C Excavator
Operating Weight 36,300 lbs
Gross Hp    100
Cab Height 9 ft  9 in
Track Width 8 ft  6 in
Dig Depth 19 ft 11 in
Tail Swing Radius 8 ft  0 in
Max Reach 27 ft  8 in
Blade Width  n/a
Bucket Width 48 in
Track Type  Steel
Hyd Thumb Yes
Hyd Grading Bucket Yes
 		 case cx160c

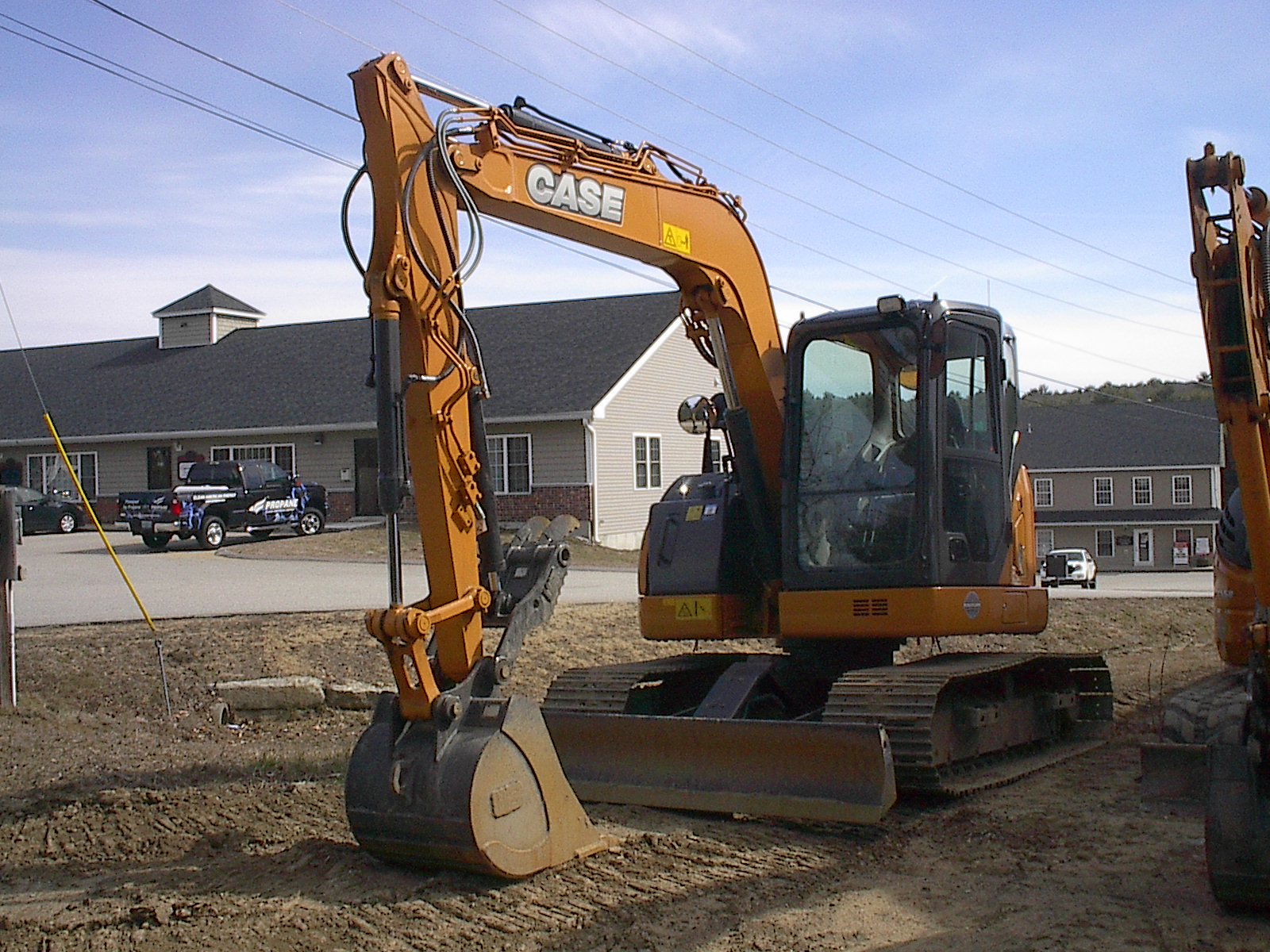

Case CX75C Short Radius Excavator







Operating Weight 16,200 lbs
Gross Hp 54 hp
Cab Height 9 ft  1 in
Track Width  8 ft  1 in
Dig Depth 13 ft  7 in
Dump Height 17 ft  4 in
Tail Swing Radius   4 ft  3 in
Max Reach 19 ft  5 in
Blade Width 8 ft  1 in
Bucket Width 30 in
Track Type  Steel
Hyd Thumb Yes
Grading Bucket 4' Hyd Tilt
 		 CX75Ccase cx55b
Case CX60C Compact Excavator







Operating Weight 13,760 lbs
Gross Hp 64.7 hp
Cab Height 8 ft  4 in
Track Width  6 ft  6 in
Dig Depth 13 ft  1 in
Dump Height 13 ft  10 in
Tail Swing Overhang   6 in
Max Dig Radius 21 ft  3 in
Blade Width 6 ft  7 in
Bucket Width 24 in
Track Type  Rubber
Hyd Thumb Yes
Grading Bucket  4 ft hyd tilt
 		 2019 CASE CX60C For Sale In Bowling Green, Kentucky | MachineryTrader.com

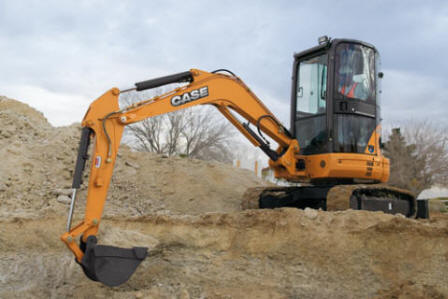

Case CX31B Compact Excavator





Operating Weight 6,679 lbs
Gross Hp 28.4 hp
Cab Height 8 ft  5 in
Track Width  5 ft  1 in
Dig Depth 9 ft  2 in
Tail Swing Overhang 0 ft  0 in
Max Reach 12 ft  6 in
Blade Width 5 ft  1 in
Bucket Width 24 in
Track Type  Rubber
Hyd Thumb Yes
 		 case cx31b

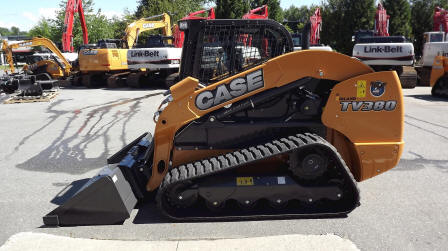

Case
TV380
Track  Loader
Operating Weight  10,550 lbs
Operating Load 3,800 lbs
Gross Hp      90
Height to  bucket Pin    131.6 in.
Dump Height       90.7 in.
Height to ROPS      80.4 in.
Length w/Bucket     147.3 in.
Width     76 in.
Bucket Width 78 in.

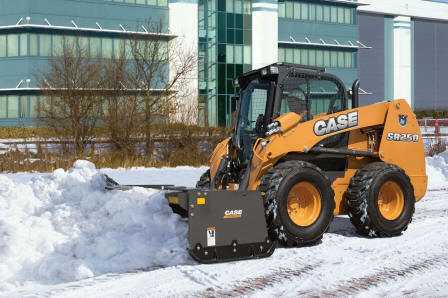

Case SR250
Skid Steer Loader
Operating Weight  7,700 lbs
Operating Load 2,500 lbs
Gross Hp      90
Height to  bucket Pin     125.1 in.
Dump Height       90.7 in.
Height to ROPS       78.8 in.
Length w/Bucket     146.2 in.
Width     70 in.
Bucket Width 72 in.
Case


Operating Weight  7,400.0 lbs
Operating Load  2,200.0 lbs
Gross Hp       82.0
Height to  bucket Pin     125.1 in.
Dump Height       98.3 in.
Height to ROPS       78.8 in.
Length w/Bucket     146.2 in.
Width       70.0 in.
Bucket Width 72.0 in.

Case




Operating Weight   15,518 lbs
Lift Capacity    6,182 lbs
Gross Hp           79.0
Height to  bucket Pin 134 in.
Dump Height 107 in.
Height to ROPS 105 in.
Length w/Bucket 274 in.
Width in.
Bucket Width 82 in.

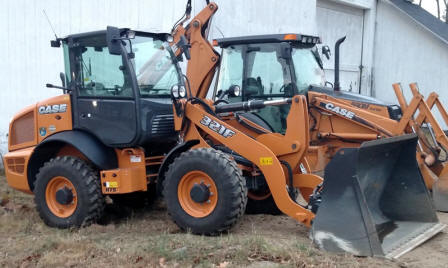

CASE
321F Compact Wheel Loader
Operating Weight      13,380 lbs
Tipping Load SAE 9,877 lbs
Lift Capacity full ht 8,249 lbs
Gross Hp           74
Cab Height 105.5 in
Height to  bucket Pin 133.7 in
Dump Height  96 in
Height to ROPS 105.5 in
Length w/Bucket  237.6 in
Width 73.2 in
Bucket Width  82.7 in
Bucket Capacity 1.7 cy

 		 case 321f

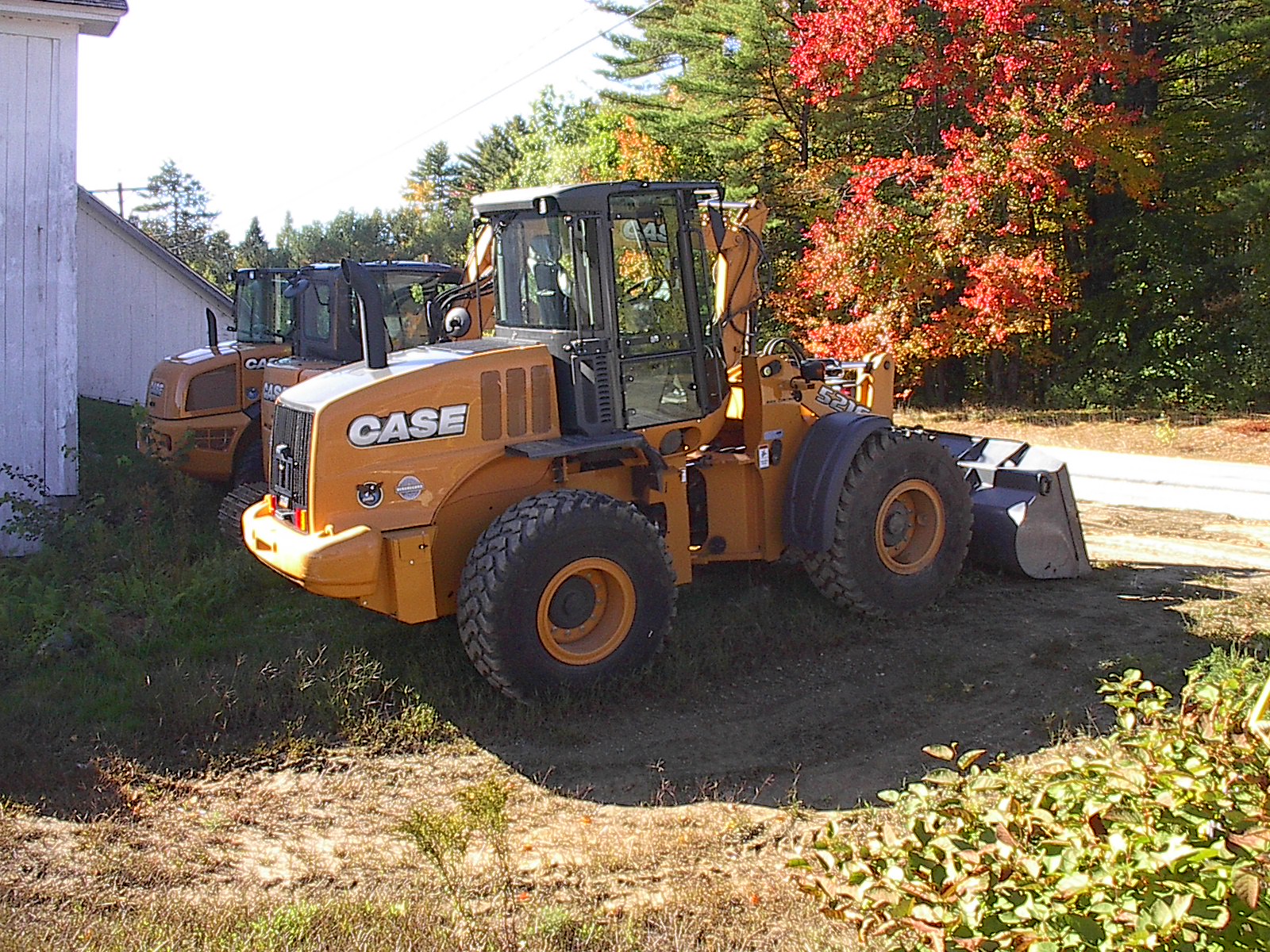

CASE
521F
Wheel
Loader



Operating Weight      22,855 lbs
Tipping Load SAE       17,258 lbs
Lift Capacity full ht.       12,237 lbs
Gross Hp 131
Cab Height 129 in
Height to bucket pin 142.1 in
Dump Height 105 in
Height to ROPS 129 in
Length w/Bucket 265.9 in
Width 98 in
Bucket Width 100.4 in
Bucket Capacity 2.6 cy

 		 Case 521F Loader
